Hide-A-Line 4" 14 Ft. Cover Kit for Mini Split and Central Air Conditioner & Heat Pump Line Set Cover Kit Decorative Tubing Cover
| ← Hide-A-Line 3" 7.5 Ft. Cover Kit | Corner Cap → |
|
Features
|
- Product Description
- Specifications
- Downloads
- Where to buy
Cover Kit:
Complete Kit Includes Covers To Accommodate Most Applications To Protect And Hide Wiring And Connection Lines For A Sleek, Polished Finish.

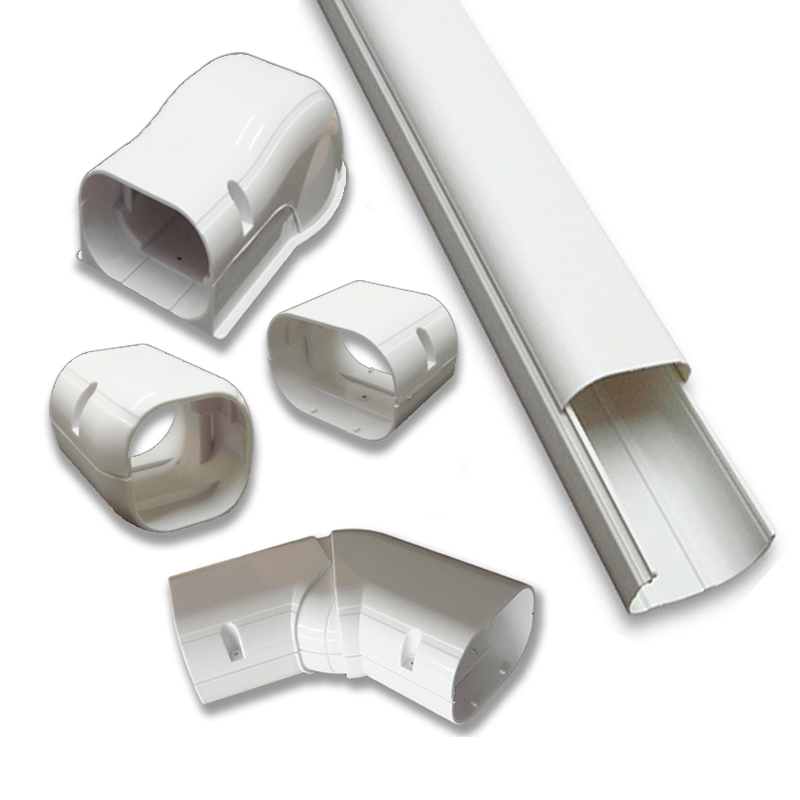

Kit Includes:
- (4) 39” Hide-A-Line Tubing
- (1) End Cap
- (1) Wall Cover Cap
- (3) Coupler
- (1) Horizontal Elbow, Universal 90º-120º
- Mounting Hardware
| Part # | Qty. | Part Name |
| DA-110G | 4 | 39'' Hide-a-Line Tubing |
| DA-110K | 1 | End Cap |
| DA-110B | 1 | Wall Cover |
| DA-110C | 3 | Coupler |
| DA-110E | 1 | Horizontal Elbow, Universal 90º-120º |
CA Residents: Prop 65 WARNING(S)
| Part # | A | B | C | D | E |
| Hide-A-Line | 4 3/8 | 3 | 39 | - | - |
| Part # | A | B | C | D | E |
| End Cap | 3 3/8 | 2 3/4 | 3 1/2 | 4 5/8 | 3 3/4 |
| Part # | A | B | C | D | E |
| Wall Cover | 4 5/8 | 3 1/4 | 9 5/8 | 4 5/8 | 3 3/4 |
| Part # | A | B | C | D | E |
| Coupler | 4 5/8 | 3 3/4 | 3 1/8 | - | - |
| Part # | A | B | C | D | E |
| Elbow | 4 5/8 | 3 3/4 | 8 1/8 | - | - |
