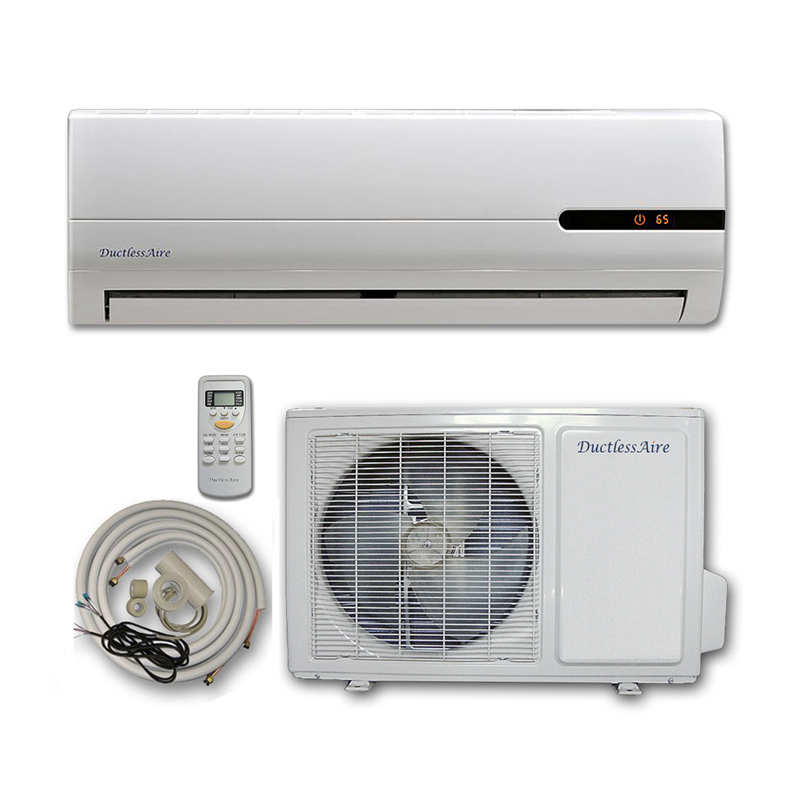

24,000 BTU Ductless Mini Split Heat Pump
| ← 18,000 BTU Ductless Mini Split Heat Pump | 12,000 BTU DC Inverter Ductless Mini Split Heat Pump → |
|
Features Model: DA2413-H230 High-Tech Fan for quiet operation |
- Product Description
- Specifications
- Downloads
- Where to buy
- Quiet, Efficient And State Of The Art Technology
- Top Quality Without Top Price!
- Powered By GMCC Compressor For Turbo Comfort For All Seasons
- Top Of The Line Anti-Corrosion Coated Coils
- Auto ReStar and On/Off Timer Features
- Independent Dehumidification
- No Ductwork Required And Can Be Ready To Use On Installation Day
- High Efficient Washable Filter Screen
- Backed By Impeccable DuctlessAire Warranty: 1 year parts, 5 years compressor
|
Power supply (V/hz) |
230/60 |
|
Cooling |
24,000 |
|
Heating |
24,000 |
|
SEER |
13 |
|
HSPF |
7.7 |
|
EER Cooling/ |
3.3/ |
|
Dehumidification (Pts/hr) |
4.40 |
|
Current (A) Rated/ Max Cooling |
8.5/10.2 |
|
Heating |
8/9.9 |
|
Power Consumption (KW) Rated/Max Cooling |
1.93/2.21 |
|
Heating |
1.8/2.14 |
|
Indoor Air Circulation: |
612/665/724 |
|
Indoor Noise level dB(A): L / M / H |
50/47/44 |
|
Outdoor Fan Speed (RPM) |
780 |
|
Outdoor Noise Level dB(A) |
~ 59 |
|
Indoor Fan Speeds |
1220/1100/1000 |
|
Connection Method |
Flare |
|
Max Pipe Length |
49.2ft/15m |
|
Max Elevation |
16.4 Ft / 5m |
|
Pipe Size |
3/8" / 5/8" |
|
Service Port Connection |
1/2" |
|
Indoor Dimensions |
48.23×12.99×9.65 |
|
Indoor Package Dimensions |
52.56×16.14×12.60 |
|
Indoor Net Weight (lbs.) |
44 |
|
Indoor Gross Weight (lbs.) |
55 |
|
Outdoor Dimensions |
35.43×12.99×32.87 |
|
Outdoor Package Dimensions |
40.55×17.32×37.80 |
|
Outdoor Net Weight (lbs.) |
143 |
|
Outdoor Gross Weight (lbs.) |
154 |
|
Refrigerant |
R410A |
