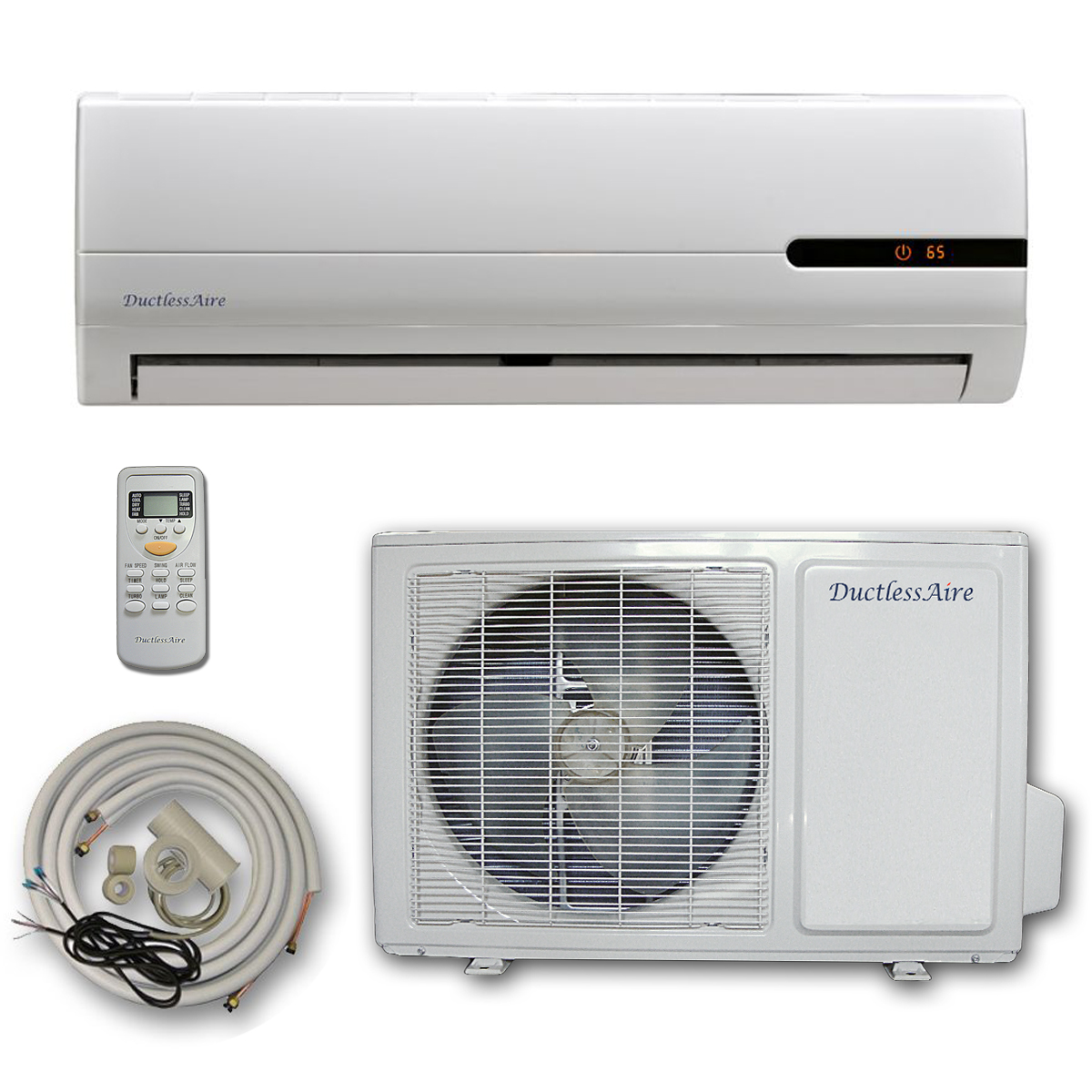

12,000 BTU Ductless Mini Split Heat Pump
| ← 24,000 BTU 20.5 SEER DC Inverter Ductless Mini Split Heat Pump | 18,000 BTU Ductless Mini Split Heat Pump → |
|
Features Model: DA1213-H120
High-Tech Fan for quiet operation
|
- Product Description
- Specifications
- Downloads
- Where to buy
- Quiet, Efficient And State Of The Art Technology
- Top Quality Without Top Price!
- Powered By GMCC Compressor For Turbo Comfort For All Seasons
- Top Of The Line Anti-Corrosion Coated Coils
- Auto ReStar and On/Off Timer Features
- Independent Dehumidification
- No Ductwork Required And Can Be Ready To Use On Installation Day
- High Efficient Washable Filter Screen
- Backed By Impeccable DuctlessAire Warranty: 1 year parts, 5 years compressor
|
Power supply (V/hz) |
115/60 |
|
Cooling |
12,000 |
|
Heating |
12,000 |
|
SEER |
13 |
|
HSPF |
8 |
|
EER Cooling/ |
3.47/ |
|
Dehumidification (Pts/hr) |
2.11 |
|
Current (A) Rated/ Max Cooling |
9.6/13.1 |
|
Heating |
9.3/12.3 |
|
Power Consumption (KW) Rated/Max Cooling |
1.01/1.42 |
|
Heating |
1/1.35 |
|
Indoor Air Circulation: |
276/330/376 |
|
Indoor Noise level dB(A): L / M / H |
42/38/35 |
|
Outdoor Fan Speed (RPM) |
790 |
|
Outdoor Noise Level dB(A) |
~ 55 |
|
Indoor Fan Speeds |
1250/1100/950 |
|
Connection Method |
Flare |
|
Max Pipe Length |
49.2ft/15m |
|
Max Elevation |
16.4 Ft / 5m |
|
Pipe Size |
1/4" / 1.2" |
|
Service Port Connection |
1/2" |
|
Indoor Dimensions |
35.43×11.50×8.46 |
|
Indoor Package Dimensions |
38.98×14.84×11.81 |
|
Indoor Net Weight (lbs.) |
29 |
|
Indoor Gross Weight (lbs.) |
33 |
|
Outdoor Dimensions |
33.46× 11.61× 23.82 |
|
Outdoor Package Dimensions |
39.17×16.34×27.17 |
|
Outdoor Net Weight (lbs.) |
79 |
|
Outdoor Gross Weight (lbs.) |
90 |
|
Refrigerant |
R410A |
